SPECS™ for 1mL inserts
SPECS - 1mL are tiny electrochemical synthesizers installed directly in 1 mL (8 mm x 30 mm) glass inserts. When used with the Lumidox® 96-well reactor and LED array, production rates > 3 umol/hr/insert are possible.
Each SPEC is held in place with a press-fit holder (patent pending) to center it, suspend it above the bottom surface of the insert, and protect it from stir bars. The holder is made from chemically resistant polypropylene with no adhesives.

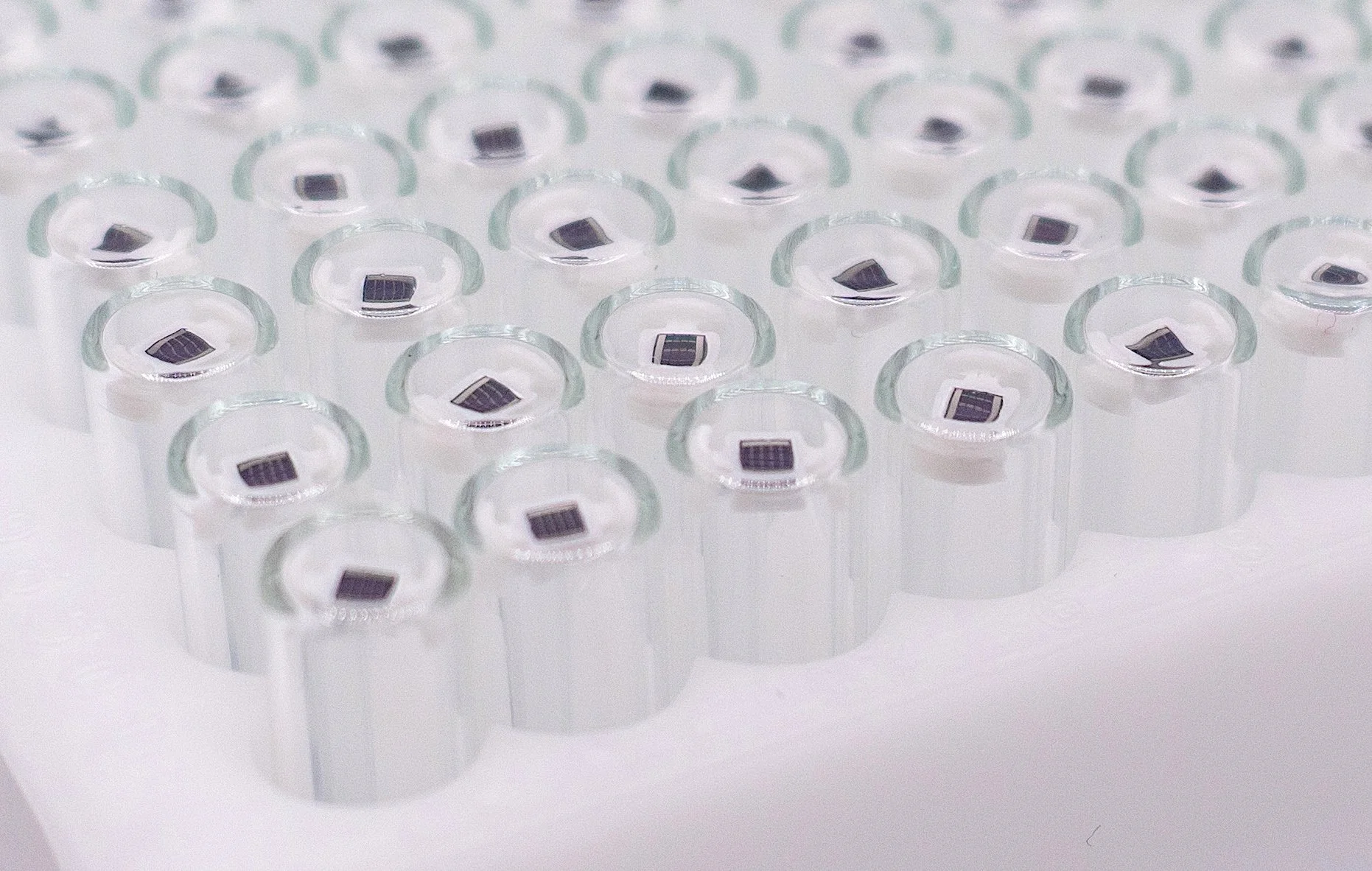

SPECS are delivered in 96 insert racks for easy loading into the Lumidox reactor. Loading takes literally 5 seconds.
SPECS size: 2 mm x 2 mm x 0.5 mm
Electrodes: Platinum
Holder: 3D-printed polypropylene
Current: 20 uA per sun of illumination
(1 sun = 1 mW/sq mm)
Maximum output voltage: 8 V
Mixing: Compatible with stir bars, orbital shakers, etc.
Usage: Intended for single use for maximum reliability.
